For this activity, create the following directory structure in your portfolio repository under src/ica folder:
portfolioββ src ββ ica ββ 04_adv_maps ββ code β ββ 04-adv-maps-1-notes.qmd ββ data β ββ ... β saving data here during this activity ββ figures ββ ... β saving created maps here during this activity
First load required packages.
Code
#Install these packages first# install.packages(c("sf","elevatr","terra","stars","tidycensus"))# install.packages('devtools')# devtools::install_github("ropensci/USAboundaries")# install.packages("USAboundariesData", repos = "https://ropensci.r-universe.dev", type = "source")library(tidyverse)library(sf) # tools for working with spatial vector data (GIS functionality, mapping)library(elevatr) # access to raster elevation mapslibrary(terra)library(stars)library(tidycensus) # spatial data for the US with census informationlibrary(USAboundaries) # access to boundaries for US states, counties, zip codes, and congressional districts
Navigate to the following URLs to download the spatial data files weβll be using in this activity. Put these files in the data folder of your 04_adv_maps folder.
File name: shp_water_lakes_rivers.zip (Unzip this after downloading.)
Read in Files
Read in the MN cities and MN water shapefiles by entering the correct relative paths in st_read(). Tab completion will be very helpful here: type part of a directory or file name and hit tab to autocomplete or bring up a dropdown of options.
Code
# The sf package comes with a North Carolina shapefile:nc <-st_read(system.file("shape/nc.shp", package ="sf"))
Reading layer `nc' from data source
`/Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/library/sf/shape/nc.shp'
using driver `ESRI Shapefile'
Simple feature collection with 100 features and 14 fields
Geometry type: MULTIPOLYGON
Dimension: XY
Bounding box: xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
Geodetic CRS: NAD27
Code
# Read in shapefiles just downloadedmn_cities <-st_read("../data/shp_loc_pop_centers/city_and_township_population_centers.shp")
Reading layer `city_and_township_population_centers' from data source
`/Users/toriduckworth/Documents/course_work/stat212/class_activities/portfolio-duckwor37/src/ica/04_adv_maps/data/shp_loc_pop_centers/city_and_township_population_centers.shp'
using driver `ESRI Shapefile'
Simple feature collection with 1081 features and 8 fields
Geometry type: POINT
Dimension: XY
Bounding box: xmin: 190832.6 ymin: 4816672 xmax: 747463.4 ymax: 5468045
Projected CRS: NAD83 / UTM zone 15N
Reading layer `LakesAndRivers' from data source
`/Users/toriduckworth/Documents/course_work/stat212/class_activities/portfolio-duckwor37/src/ica/04_adv_maps/data/shp_water_lakes_rivers/LakesAndRivers.shp'
using driver `ESRI Shapefile'
Simple feature collection with 2313 features and 8 fields
Geometry type: MULTIPOLYGON
Dimension: XY
Bounding box: xmin: 419538.6 ymin: 4922700 xmax: 522665 ymax: 5029945
Projected CRS: NAD83 / UTM zone 15N
The sf package reads in spatial data in data.frame-like format. Using the class() function we can check the class (type) of object that we just read in. Note the presence of the βsfβ and βdata.frameβ classes:
Code
class(nc)
[1] "sf" "data.frame"
Code
class(mn_cities)
[1] "sf" "data.frame"
Code
class(mn_water)
[1] "sf" "data.frame"
When we read in spatial objects, it is useful to check what CRS underlies the data. We can do that with st_crs() from the sf package:
Code
st_crs(nc)
Coordinate Reference System:
User input: NAD27
wkt:
GEOGCRS["NAD27",
DATUM["North American Datum 1927",
ELLIPSOID["Clarke 1866",6378206.4,294.978698213898,
LENGTHUNIT["metre",1]]],
PRIMEM["Greenwich",0,
ANGLEUNIT["degree",0.0174532925199433]],
CS[ellipsoidal,2],
AXIS["latitude",north,
ORDER[1],
ANGLEUNIT["degree",0.0174532925199433]],
AXIS["longitude",east,
ORDER[2],
ANGLEUNIT["degree",0.0174532925199433]],
ID["EPSG",4267]]

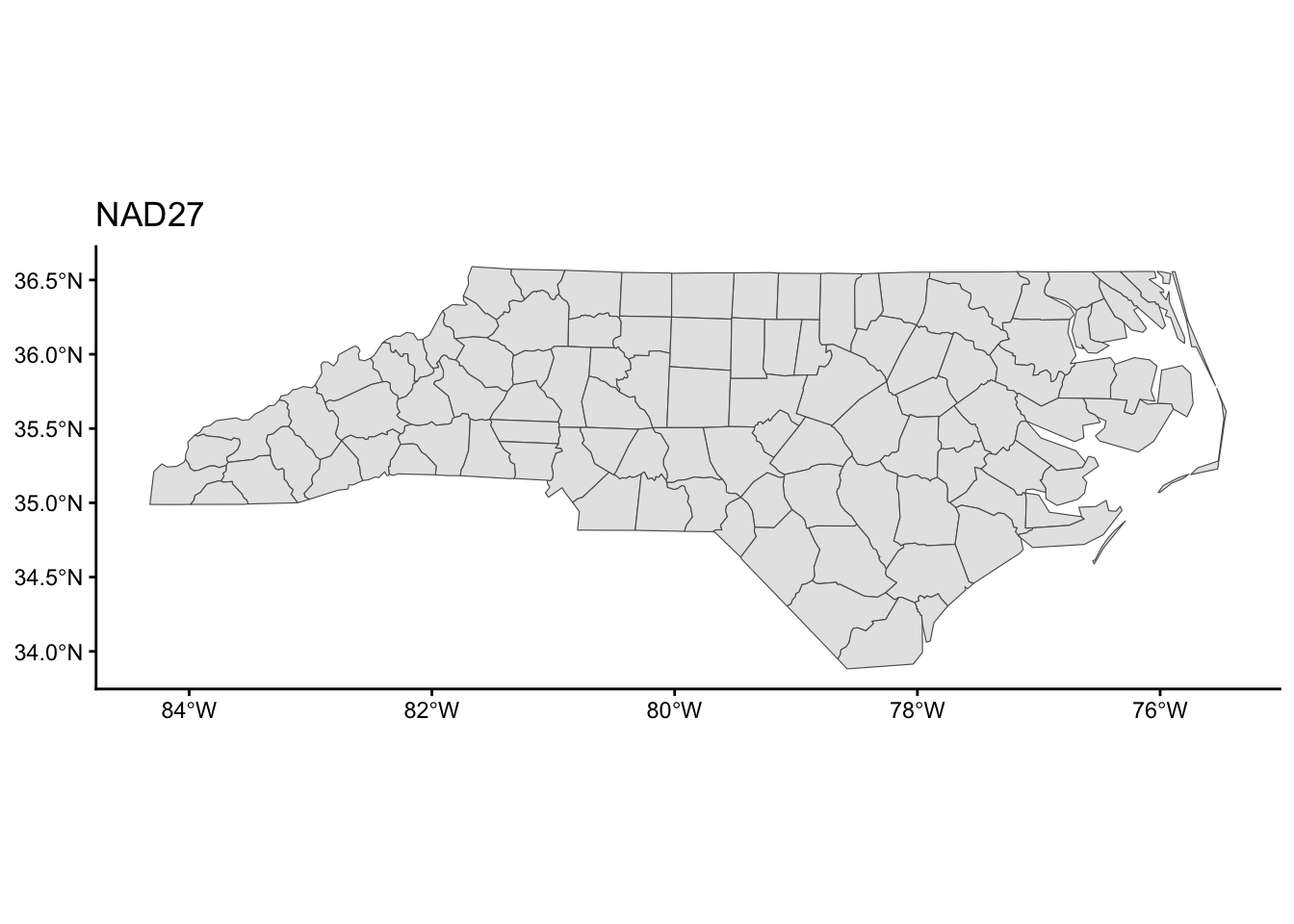

We can treat sf objects similarly to ordinary datasets when using ggplot2 to make spatial visualizations:

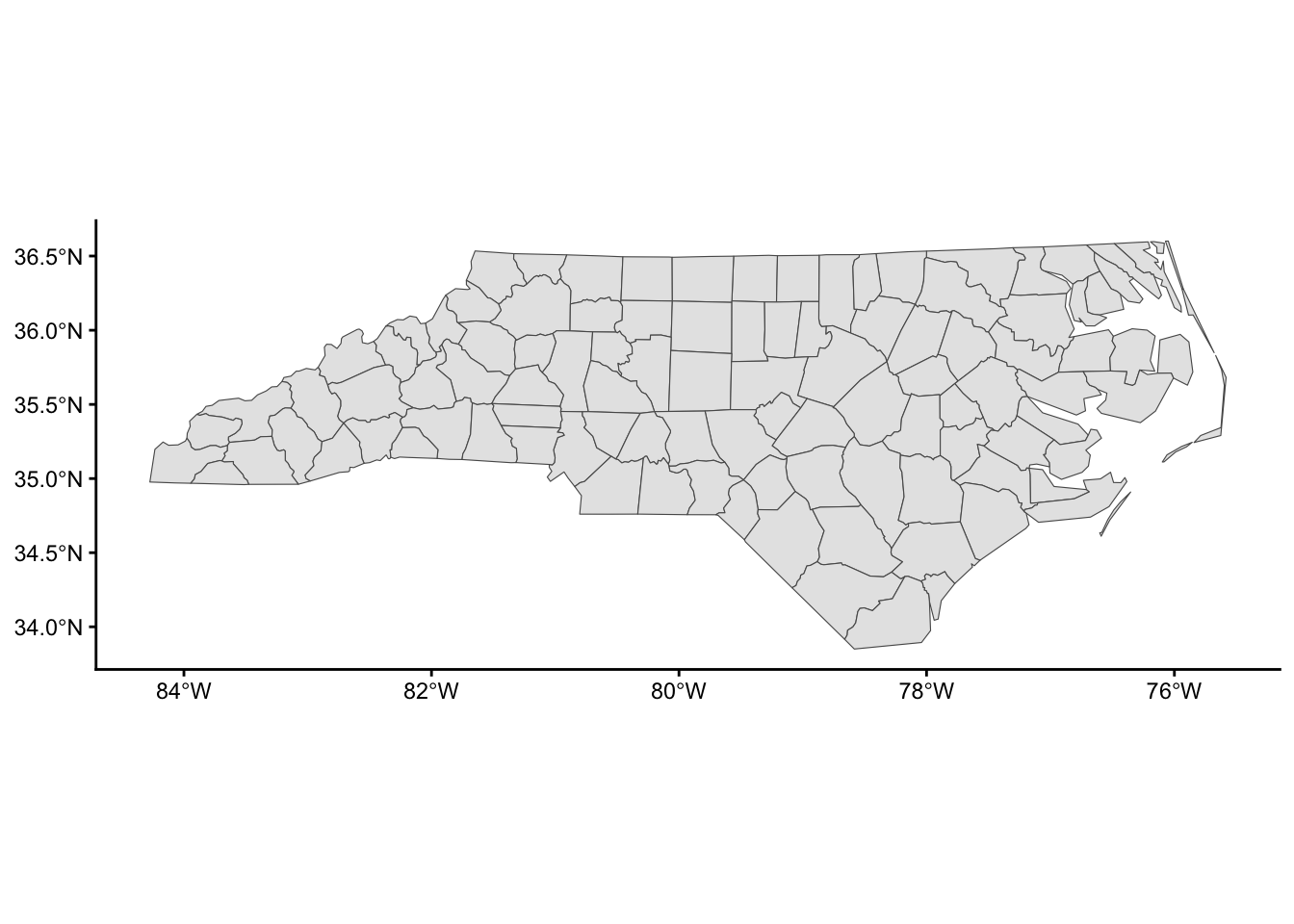

Letβs explore how changing the CRS changes the map. The st_transform() function in sf re-expresses a spatial object using a user-supplied CRS. The crs argument takes a string descriptor of the CRS. We can find these descriptors via https://epsg.io. In the example below, I searched for βSouth Carolinaβ.
The goal is to use https://epsg.io to find two CRSs that result in a North Carolina map that is noticeably different from the original in the NAD27 CRS.
Take a look at the function below that re-maps a spatial object using a new CRS.
Read through the function to get a sense for how this code works.
spatial_obj and new_crs are called arguments (function inputs).
Add one more argument called title to this function. Use this input to set the plot title.
Use your function to make two new maps using your chosen CRSs.
Code

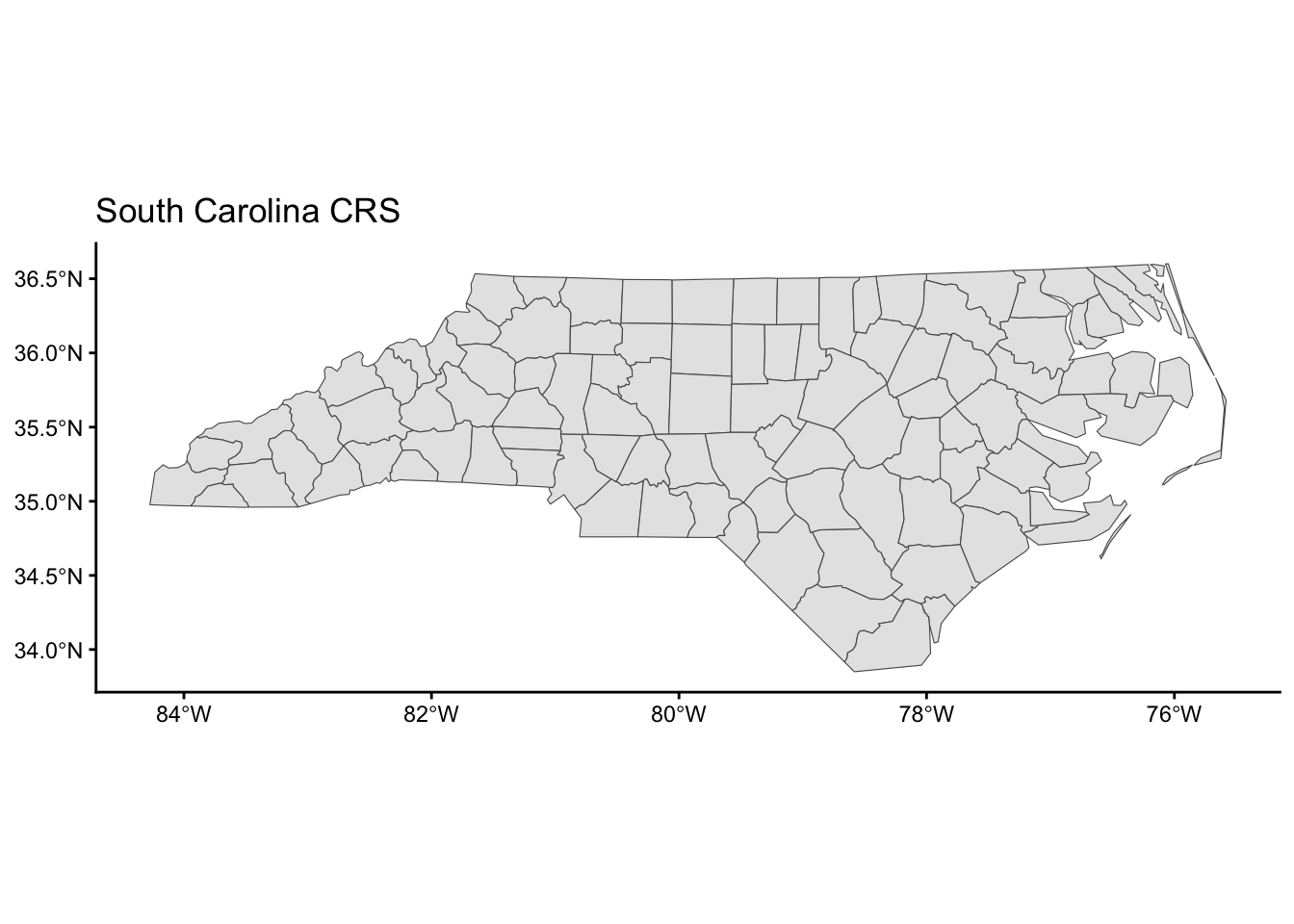

transform_and_plot <-function(spatial_obj, new_crs, title) { spatial_obj |>st_transform(crs = new_crs) |>ggplot() +geom_sf() +theme_classic() +labs(title = title)}# Example usage of this function (using a South Carolina CRS)transform_and_plot(nc, new_crs ="EPSG:32133", title ="South Carolina CRS")
Code

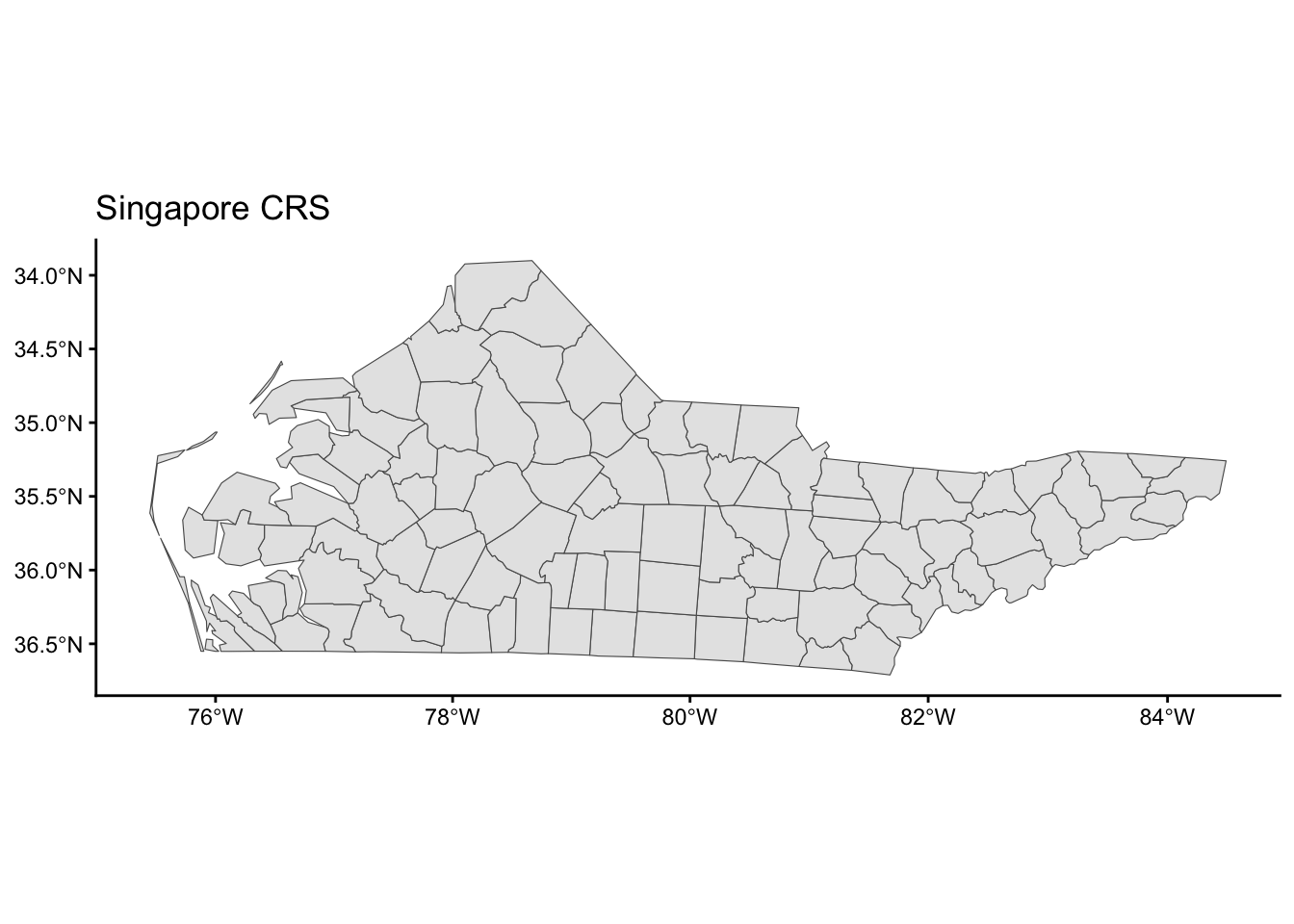

#First map with different CRS transform_and_plot(nc, new_crs ="EPSG:3414", title ="Singapore CRS")
Code

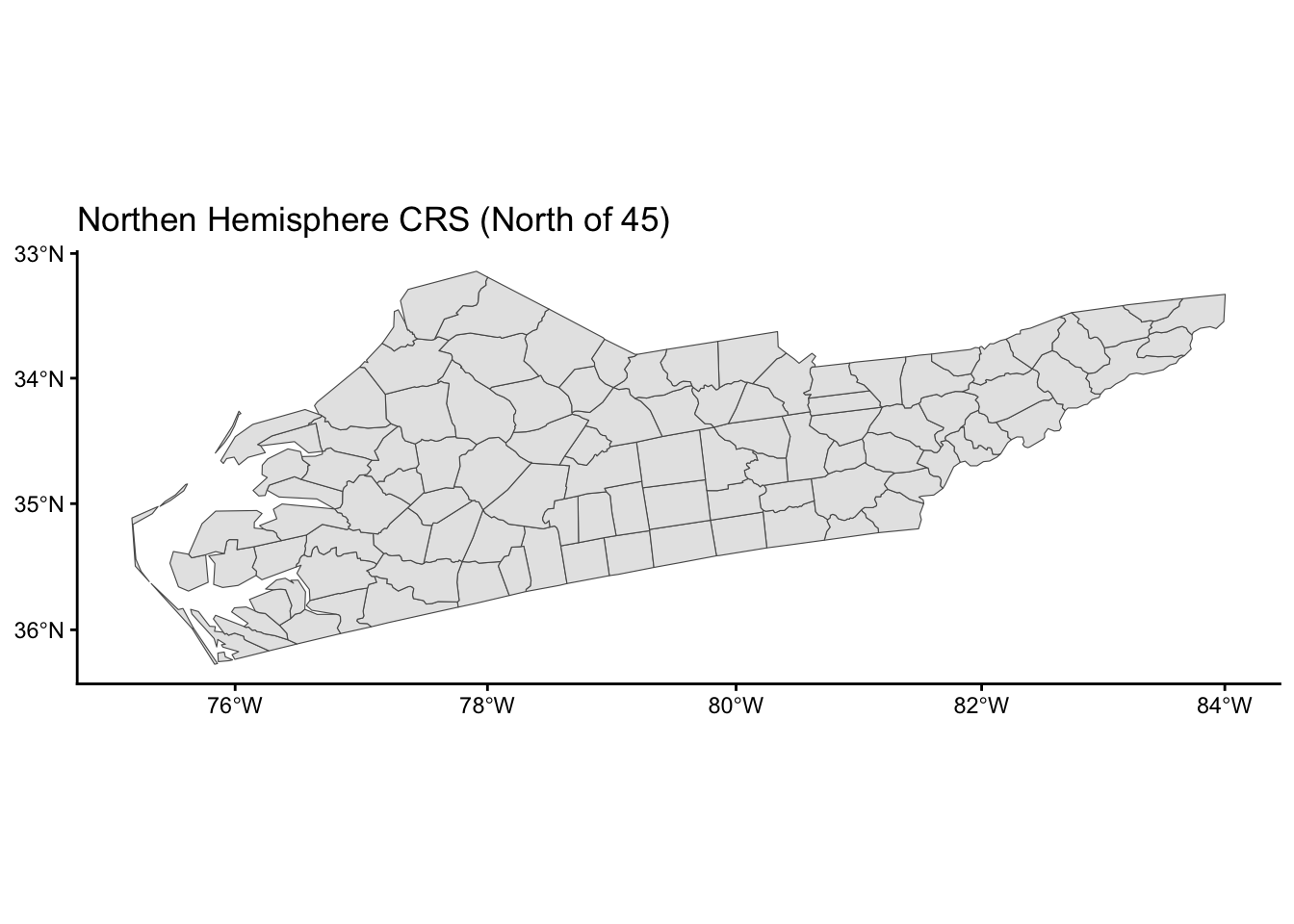

#Second map with different CRS transform_and_plot(nc, new_crs ="EPSG:3576", title ="Northen Hemisphere CRS (North of 45)")
Verify your understanding: If you had point location data that was not in the NAD27 CRS, what would you expect about the accuracy of how they would be overlaid on the original North Carolina map?
If you you had a point location data that was not in the NAD27 CRS, the accuracy of how it would be overlaid would be low. Since it is a map that is designed to fit another region of the world it will warp this section.
MN Map with Multiple Layers
Goal: create a map of MN with different layers of information (city point locations, county polygon boundaries, rivers as lines and polygons, and a raster elevation map).
Get County Boundaries
Weβve already read in city location and water information from external shapefiles. We can access county boundaries with the us_counties() function in the USAboundaries package.
Code
# Load country boundaries data as sf objectmn_counties <- USAboundaries::us_counties(resolution ="high", states ="Minnesota")# Take care of duplicate column names (there are two identical "state_name" columns)names_counties <-names(mn_counties)names(mn_counties)[names_counties =="state_name"] <-c("state_name1", "state_name2")
Unifying CRSs Across Different Spatial Datasets
We first need to ensure that the CRS is the same for all spatial datasets.
Check the CRS for the mn_cities, mn_water, and mn_counties datasets.
If the datasets donβt all have the same CRS, use st_transform() to update the datasets to have the same CRS as mn_cities. You can use crs = st_crs(mn_cities) within st_transform().
Code
#checking CRS for datasets st_crs(mn_cities)
Coordinate Reference System:
User input: NAD83 / UTM zone 15N
wkt:
PROJCRS["NAD83 / UTM zone 15N",
BASEGEOGCRS["NAD83",
DATUM["North American Datum 1983",
ELLIPSOID["GRS 1980",6378137,298.257222101,
LENGTHUNIT["metre",1]]],
PRIMEM["Greenwich",0,
ANGLEUNIT["degree",0.0174532925199433]],
ID["EPSG",4269]],
CONVERSION["UTM zone 15N",
METHOD["Transverse Mercator",
ID["EPSG",9807]],
PARAMETER["Latitude of natural origin",0,
ANGLEUNIT["Degree",0.0174532925199433],
ID["EPSG",8801]],
PARAMETER["Longitude of natural origin",-93,
ANGLEUNIT["Degree",0.0174532925199433],
ID["EPSG",8802]],
PARAMETER["Scale factor at natural origin",0.9996,
SCALEUNIT["unity",1],
ID["EPSG",8805]],
PARAMETER["False easting",500000,
LENGTHUNIT["metre",1],
ID["EPSG",8806]],
PARAMETER["False northing",0,
LENGTHUNIT["metre",1],
ID["EPSG",8807]]],
CS[Cartesian,2],
AXIS["(E)",east,
ORDER[1],
LENGTHUNIT["metre",1]],
AXIS["(N)",north,
ORDER[2],
LENGTHUNIT["metre",1]],
ID["EPSG",26915]]
Code
st_crs(mn_water)
Coordinate Reference System:
User input: NAD83 / UTM zone 15N
wkt:
PROJCRS["NAD83 / UTM zone 15N",
BASEGEOGCRS["NAD83",
DATUM["North American Datum 1983",
ELLIPSOID["GRS 1980",6378137,298.257222101,
LENGTHUNIT["metre",1]]],
PRIMEM["Greenwich",0,
ANGLEUNIT["degree",0.0174532925199433]],
ID["EPSG",4269]],
CONVERSION["UTM zone 15N",
METHOD["Transverse Mercator",
ID["EPSG",9807]],
PARAMETER["Latitude of natural origin",0,
ANGLEUNIT["Degree",0.0174532925199433],
ID["EPSG",8801]],
PARAMETER["Longitude of natural origin",-93,
ANGLEUNIT["Degree",0.0174532925199433],
ID["EPSG",8802]],
PARAMETER["Scale factor at natural origin",0.9996,
SCALEUNIT["unity",1],
ID["EPSG",8805]],
PARAMETER["False easting",500000,
LENGTHUNIT["metre",1],
ID["EPSG",8806]],
PARAMETER["False northing",0,
LENGTHUNIT["metre",1],
ID["EPSG",8807]]],
CS[Cartesian,2],
AXIS["(E)",east,
ORDER[1],
LENGTHUNIT["metre",1]],
AXIS["(N)",north,
ORDER[2],
LENGTHUNIT["metre",1]],
ID["EPSG",26915]]
Code
st_crs(mn_counties)
Coordinate Reference System:
User input: EPSG:4326
wkt:
GEOGCRS["WGS 84",
DATUM["World Geodetic System 1984",
ELLIPSOID["WGS 84",6378137,298.257223563,
LENGTHUNIT["metre",1]]],
PRIMEM["Greenwich",0,
ANGLEUNIT["degree",0.0174532925199433]],
CS[ellipsoidal,2],
AXIS["geodetic latitude (Lat)",north,
ORDER[1],
ANGLEUNIT["degree",0.0174532925199433]],
AXIS["geodetic longitude (Lon)",east,
ORDER[2],
ANGLEUNIT["degree",0.0174532925199433]],
USAGE[
SCOPE["Horizontal component of 3D system."],
AREA["World."],
BBOX[-90,-180,90,180]],
ID["EPSG",4326]]
Code
#transforming mn_counties to matchmn_counties <- mn_counties |>st_transform(crs =st_crs(mn_cities))

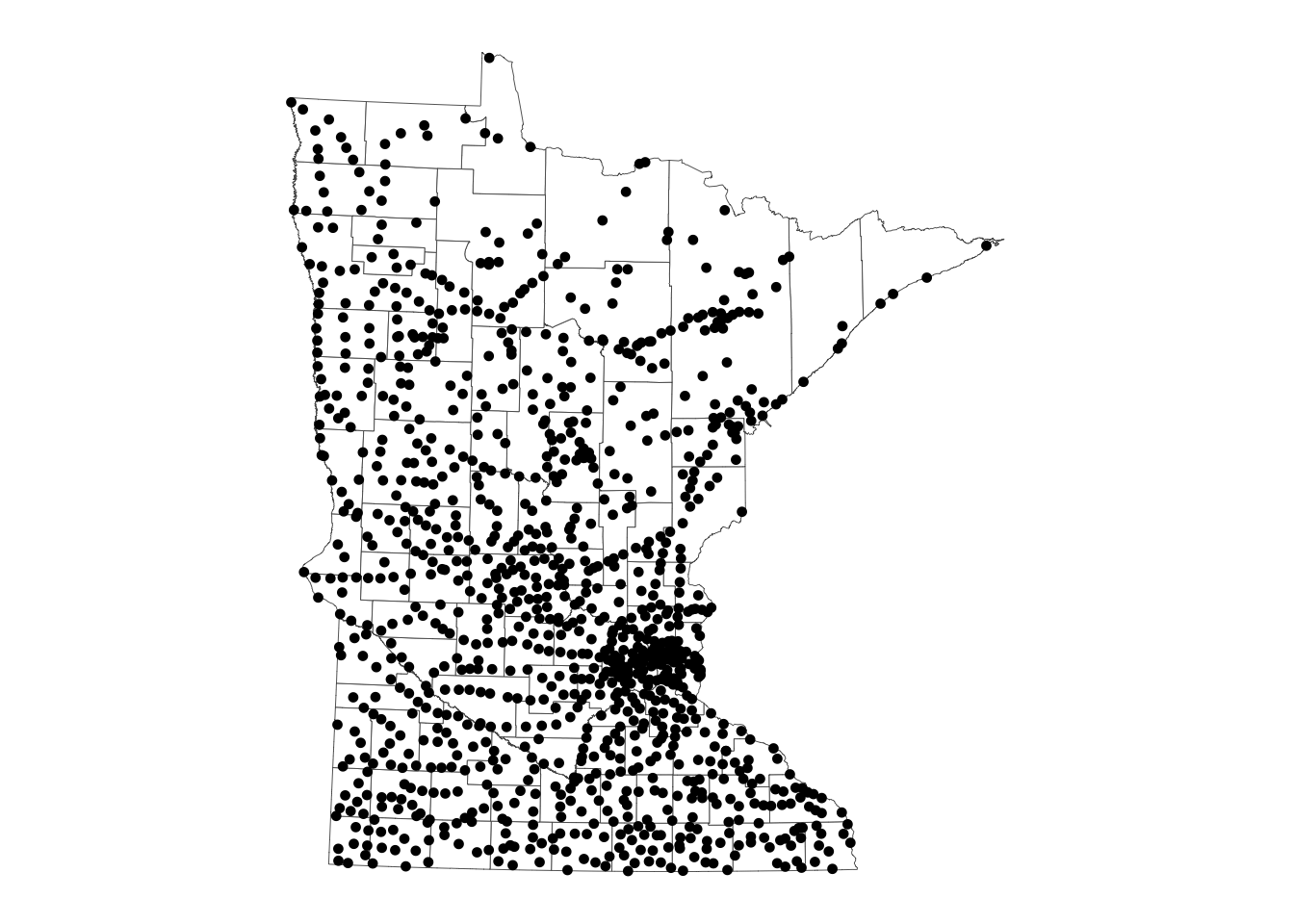

Counties + Cities
Create a map where city locations are overlaid on a map of county boundaries.
You will need to call geom_sf() twice.
Make the map background white.
Install the ggthemes package, and add the following layer to use a clean map theme: + ggthemes::theme_map()

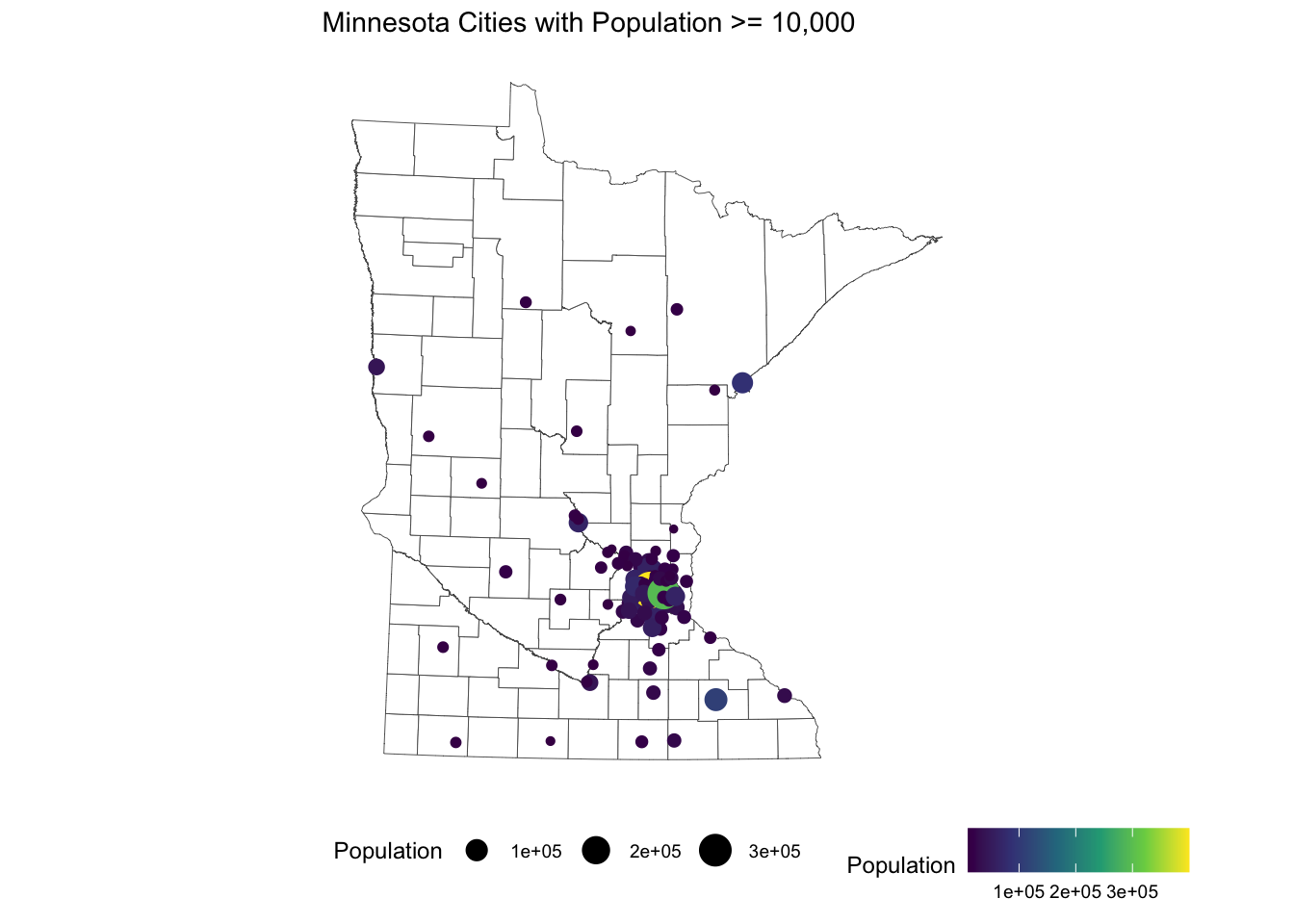

We can use traditional ggplot2 aesthetics (e.g., fill, color) to display location specific attributes. Below we only plot large cities, and we color and size cities according to their population.
Code
ggplot() +geom_sf(data = mn_counties, fill ="white") +geom_sf(data = mn_cities |>filter(Population >=10000), mapping =aes(color = Population, size = Population)) +# cities layerscale_color_viridis_c() +# continuous (gradient) color scalelabs(title ="Minnesota Cities with Population >= 10,000") + ggthemes::theme_map() +theme(legend.position ="bottom") # move legend
Look up the scale_color_viridis_c() documentation via the ggplot2 reference.
Read the function description at the top. What is the advantage of using this function for making color palettes? This function turns the colors into a scale that is seeable for color blind individuals making your data more accessable to more people.
Look through the examples section. What is the difference between the _d(), _c(), and _b() variants of this function?
The d stands for discrete scale, while the c stands for continuous scale (such as the one used above), and the b stands for a binned scale. You have to use a different function depending on what sort of data you are using.
Adding Elevation Raster Data
Where are large cities located? Is there some relationship to local geography/terrain?
To investigate these questions, we can obtain elevation data to include on the map using the elevatr package. We encounter two new functions hereβwe can look up their documentation to make sense of the code by entering the following in the Console:
elevation <- elevatr::get_elev_raster(mn_counties, z =5, clip ="bbox")raster::crs(elevation) <- sf::st_crs(mn_counties)# Convert to data frame for plottingelev_df <- elevation |> terra::as.data.frame(xy =TRUE)colnames(elev_df) <-c("x", "y", "elevation")

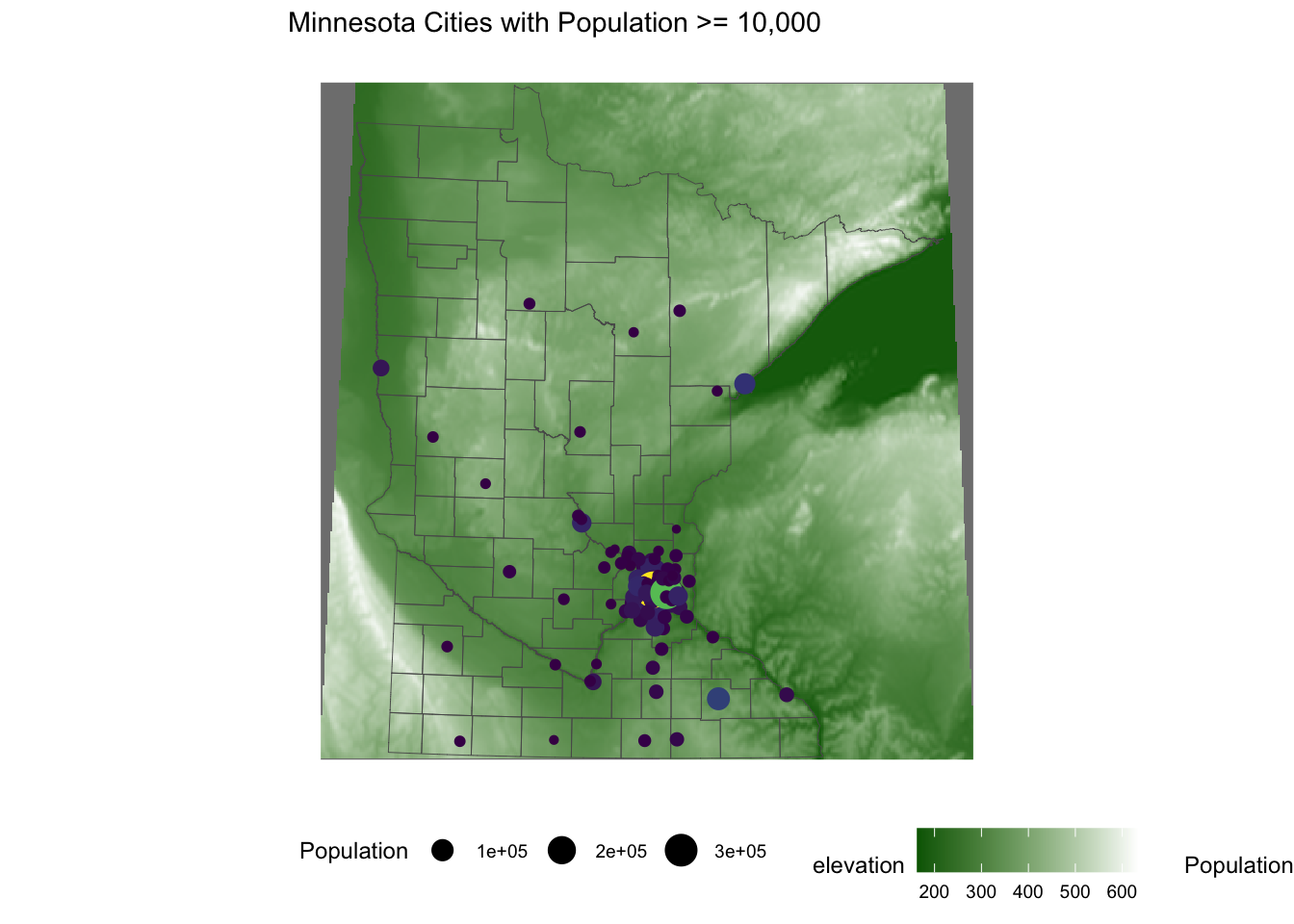

Build on our existing map by adding a raster layer for elevation as the background.
Look up the documentation for geom_raster() to plot the elevation data from elev_df. This will be the first layer of the plot.
Look at the documentation for scale_fill_gradient() to add the following elevation color scale: "darkgreen" represents the lowest elevations, and "white" represents the highest elevations.
Add in the layers from the map above to show the largest cities and the county outlines. To remove a background color, use fill = NA.
Code
ggplot() +geom_raster(data = elev_df, aes(x = x, y = y, fill = elevation)) +scale_fill_gradient(high ="white", low ="darkgreen") +geom_sf(data = mn_counties, fill ="NA") +geom_sf(data = mn_cities |>filter(Population >=10000), mapping =aes(color = Population, size = Population)) +# cities layerscale_color_viridis_c() +# continuous (gradient) color scalelabs(title ="Minnesota Cities with Population >= 10,000") + ggthemes::theme_map() +theme(legend.position ="bottom") # move legend

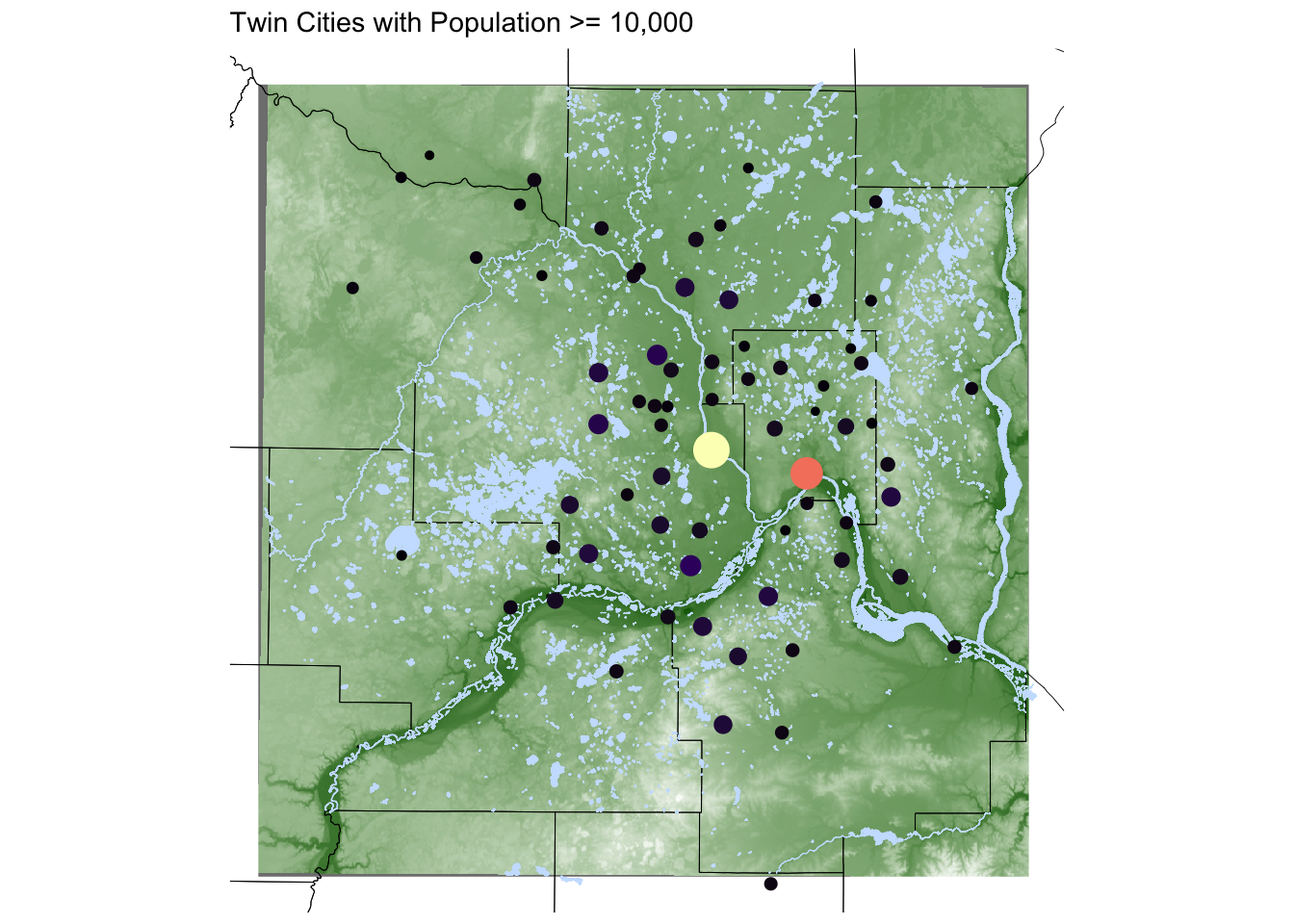

Zoom in to Twin Cities and Add Water
The bulk of the interesting information in this map is in the Twin Cities area. Letβs zoom in to this area.
We can use the st_bbox() function to get the bounding box for a spatial objectβwe do this after filtering to the 7 counties in the Twin Cities.
We then use st_crop() to trim a spatial object to a given bounding box.
elevation <- elevatr::get_elev_raster(mn_counties |>st_crop(seven_countyarea), z =9, clip ="bbox")raster::crs(elevation) <- sf::st_crs(mn_counties)# Convert to data frame for plottingelev_df <- elevation |> terra::as.data.frame(xy =TRUE)colnames(elev_df) <-c("x", "y", "elevation")
In the plot below, we add a layer for water information and a coord_sf() layer to restrict the x and y-axis limits to the Twin Cities bounding box. (Without this layer, the map would zoom back out to show all counties and bodies of water).
Code
ggplot() +geom_raster(data = elev_df, aes(x = x, y = y, fill = elevation)) +geom_sf(data = mn_counties, fill =NA, color ="black") +# county boundary layergeom_sf(data = mn_water, fill ="lightsteelblue1", color ="lightsteelblue1") +# NEW: river/lake layergeom_sf(data = mn_cities |>filter(Population >=10000), mapping =aes(color = Population, size = Population)) +# cities layerscale_color_viridis_c(option ="magma") +# continuous (gradient) color scalescale_fill_gradient(low ="darkgreen", high ="white") +# continuous (gradient) fill scalecoord_sf(xlim = seven_countyarea[c("xmin", "xmax")], ylim = seven_countyarea[c("ymin", "ymax")]) +# NEW: crop map to Twin Cities bounding boxlabs(title ="Twin Cities with Population >= 10,000") + ggthemes::theme_map() +theme(legend.position ="none") # remove legend
Letβs add to the above code chunk to save the map above to an image file called tc_map_zoom.png in the figures folder. The code example below shows a general template for saving a plot to file. Choose a reasonable width and height. (There are also jpeg() and pdf() functions for writing images.)
Code
png("../figures/tc_map_zoom.png", width =500, height =500)ggplot() +geom_raster(data = elev_df, aes(x = x, y = y, fill = elevation)) +geom_sf(data = mn_counties, fill =NA, color ="black") +# county boundary layergeom_sf(data = mn_water, fill ="lightsteelblue1", color ="lightsteelblue1") +# NEW: river/lake layergeom_sf(data = mn_cities |>filter(Population >=10000), mapping =aes(color = Population, size = Population)) +# cities layerscale_color_viridis_c(option ="magma") +# continuous (gradient) color scalescale_fill_gradient(low ="darkgreen", high ="white") +# continuous (gradient) fill scalecoord_sf(xlim = seven_countyarea[c("xmin", "xmax")], ylim = seven_countyarea[c("ymin", "ymax")]) +# NEW: crop map to Twin Cities bounding boxlabs(title ="Twin Cities with Population >= 10,000") + ggthemes::theme_map() +theme(legend.position ="none") dev.off()
Going Beyond - Twin Cities Map with leaflet
Below we show how to make the MN counties map in the leaflet package.
